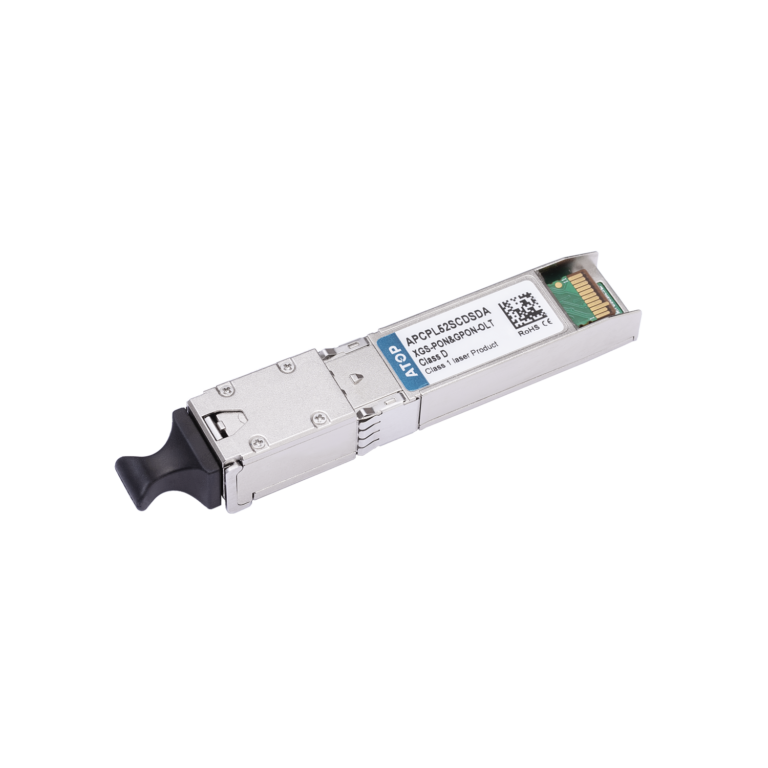

ATOP XGS Combo Class D
XGS-PON&GPON OLT Class D 20km Transceiver
ATOPATOP XGS Combo Class D is a combination of XGS-PON OLT and GPON OLT optical transceiver in a SFP+ housing, and it is compliant to ITU-T G.9807.1 XGS-PON and ITU-T G.984.2 GPON standard. This module can support XGS-PON and GPON over a single fiber via coarse wave division multiplexing. XGS-PON feature supports 9.953 Gbps continuous-mode transmission by 1577 nm EML laser and 9.953/2.488 Gbps burst-mode reception by 1270 nm APD/TIA. GPON feature supports 2.488 Gbps continuous-mode transmission by 1490 nm DFB laser and 1.244 Gbps burst-mode reception by 1310 nm APD/TIA.
It has been designed to meet the harshest external operating conditions that include temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Product Features
Package:
SFP+
Data Rate:
9.953G&2.488G(Down)/
9.953G/2.488G&1.244G(Up)
Wavelength:
1490nm (GPON)/ 1577nm (XGS-PON)
Component:
DFB/EML
Output Power:
+6~+10dBm(GPON)/ +8~+11dBm(XGS-PON)
Rec. Sens:
-35dBm(GPON)/ -33.5dBm(XGS-PON)
Connector:
SC
Case Temp.:
C
Reach:
20KM
Multi-rate:
Y
Application
Gigabits Access networks
FTTH/FTTC/FTTB
XGS-PON and GPON Combo Access networks
