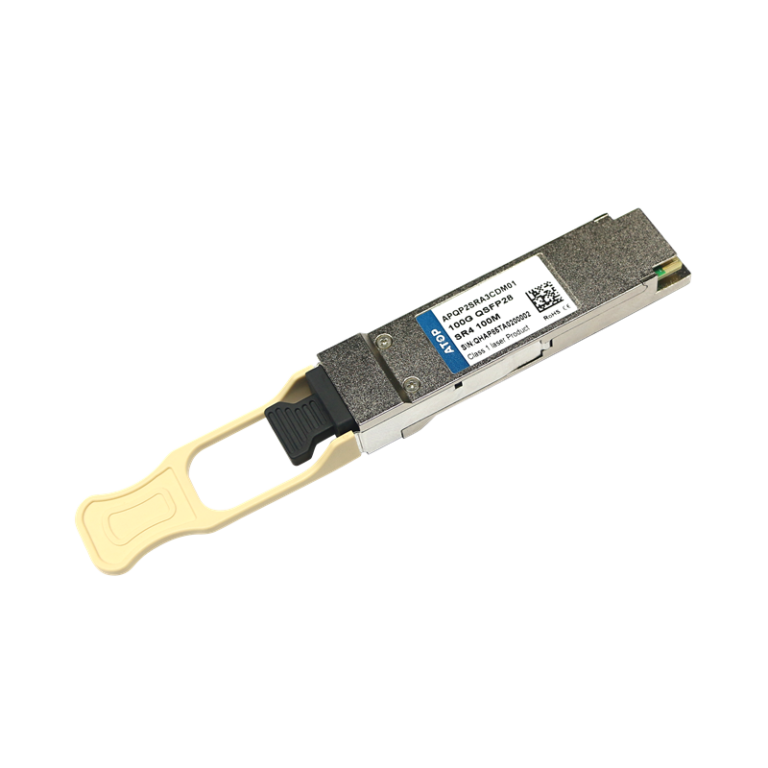

100GBASE QSFP28-SR4 100m Transceiver

100GBASE-SR4 QSFP28 850nm 100m Transceiver

ATOP 100G QSFP28-SR4 is designed as a four-channel, pluggable, parallel, QSFP28 transceiver for 100Gbps optical communication. Each channel can operate at 25Gbps up to 100m on OM4 or 70m on OM3 multi-mode fiber. With 850nm operating wavelength, this transceiver has a 12 fiber MTP (MPO) connector as optical interface and a 38 contact edge type connector as electrical interface. This product is compliant to 100GBASE-SR4 of IEEE802.3bm standard and SFF-8436 specification, and provides reliable long life, high performance, and consistent service.

100GBASE-SR4 QSFP28 850nm 100m Transceiver

Product Features

Package:

QSFP28

Data Rate:

100G

Wavelength:

850nm

Component:

VCSEL/PIN

Output Power:

-8.4~2.4dBm

Rec. Sens:

-5.2dBm

Connector:

MPO

Case Temp.:

C

Reach:

100M

Multi-rate:

Y

Application

100GBASE-SR4

100G Datacom connections

Eye Diagram

Room Temperature

Low Temperature

High Temperature
