100G AOC

100GBASE AOC (Active Optical Cable) up to 100meters

ATOP 100G AOC , short for 100G-base active optical cable, adopts a hot-plug package with a maximum link length of 70m on OM3 MMF and 100m on OM4 MMF, supporting 25Gbit/s data transmission rate. It has a single power supply of 3.3V, and its power dissipation is below 1.0W(per side). This product is well suited for 100G SR Ethernet and InfiniBand applications.
100G AOC

100GBASE AOC (Active Optical Cable) up to 100meters

Product Features

Package:

QSFP28 to QSFP28

Data Rate:

100G

Wavelength:

N/A

Component:

VCSEL/PIN

Output Power:

N/A

Rec. Sens:

N/A

Connector:

QSFP28

Case Temp.:

C

Reach:

0.5~100M

Multi-rate:

Y

Application

Infiniband QDR and DDR interconnects

100G Datacom connections

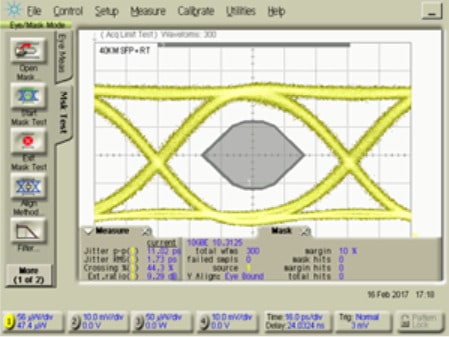

Eye Diagram

Room Temperature

Low Temperature

High Temperature
