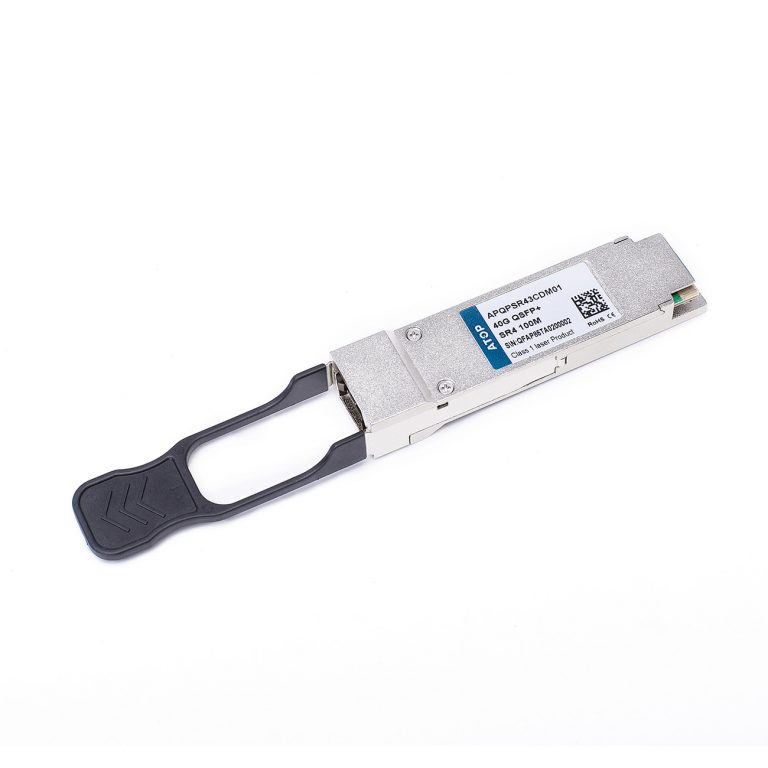

40GBASE-SR4 QSFP+ 850nm 100m Transceiver

40G QSFP

ATOP’s APQPSR43CDM01 transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ae 10GBASE-SR. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. They are RoHS compliant and lead-free.

40GBASE-SR4 QSFP+ 850nm 100m Transceiver

Product Features

Package:

QSFP+

Data Rate:

40G

Wavelength:

850nm

Component:

VCSEL/PIN

Output Power:

-8.2~2.4dBm

Rec. Sens:

-10dBm

Connector:

MPO

Case Temp.:

C

Reach:

100M

Multi-rate:

Y

Application

40GBASE-SR4 Ethernet

Infiniband 4X SDR DDR QDR

40G Telecom connections

Eye Diagram

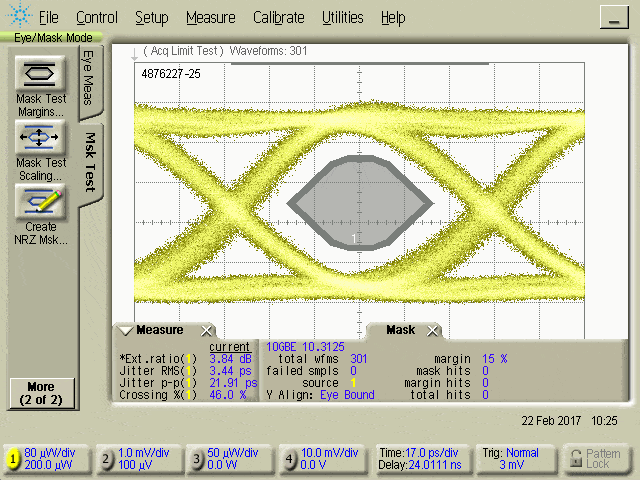

Room Temperature

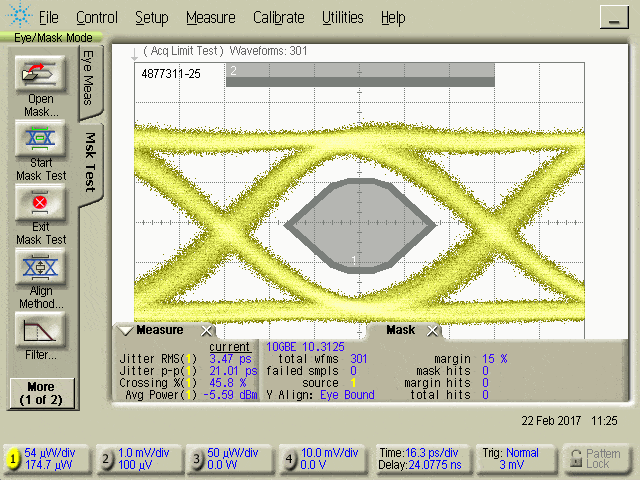

Low Temperature

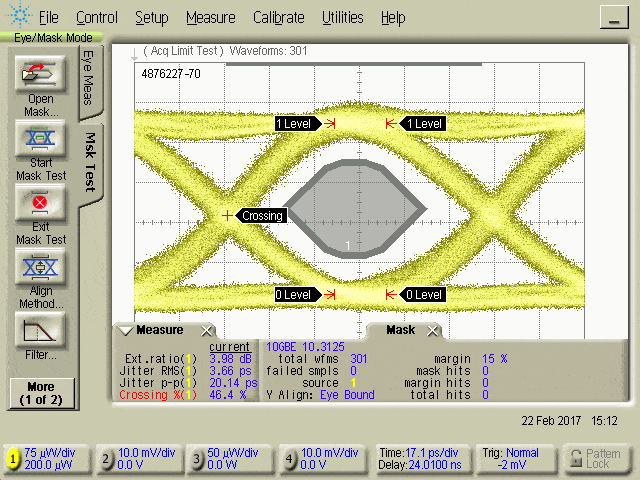

High Temperature
