10G XFP-LR for SDH/PDH 1550nm Transceiver
ATOP 10G XFP-LR for SDH/PDH transceiver is designed for use in 10Gigbit, multi-rate links up to 10KM of G.652 single mode fiber. Compatible with XFP MSA and supporting SONET OC-192 IR-2, OC-192 IR-3, SDH STM S-64.2b, STM S-64.3b and 10G Ethernet ER protocol, this product is well suited for transmission networking and data centre Fast Ethernet applications.
产品指标
封装 :
XFP
传输速率 :
10G
波长 :
1550nm
光器件 :
EML/PIN
发光范围 :
-3~+4dBm
收端灵敏度 :
-15dBm
接口 :
LC
工作温度范围 :
C/I
传输距离 :
10KM
多速率兼容 :
Y

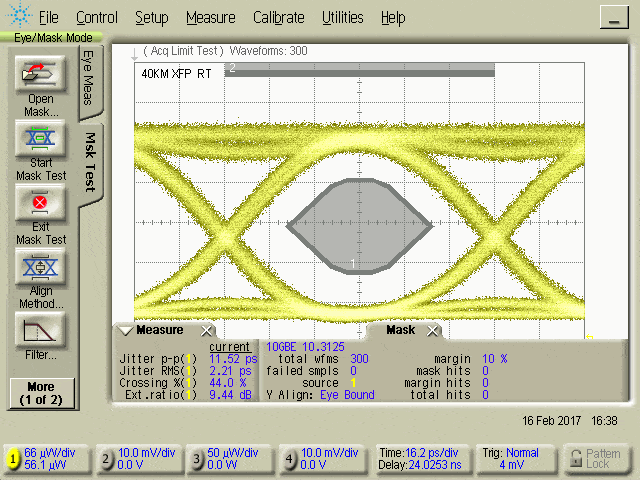

三眼图
室温
低温
高温
