10G SFP+ DWDM 20KM Transceiver
ATOP 10G SFP+ DWDM 20KM transceiver is designed for use in 10Gigbit, multi-rate links up to 20KM of G.652 single mode fiber. Compatible with SFF-8431, SFF-8432 and supporting Wireless (CPRI/eCPRI), 10G Ethernet LR and 10G Fiber Channel protocol, this product has many telecom and datacom applications including 5G/4G wireless, Fast Ethernet, and Fiber Chanel. Digital diagnostics functions are available via an I2C interface, as specified by SFF-8472.

产品指标

封装 :

SFP+

传输速率 :

10G

波长 :

C-band

光器件 :

EML/PIN

发光范围 :

-3~+4dBm

收端灵敏度 :

-15dBm

接口 :

LC

工作温度范围 :

C/I

传输距离 :

20km

多速率兼容 :

N

应用范围

10GBASE-LR/LW

10G Fibre Channel

10Gb/s SONET/SDH ITU-T

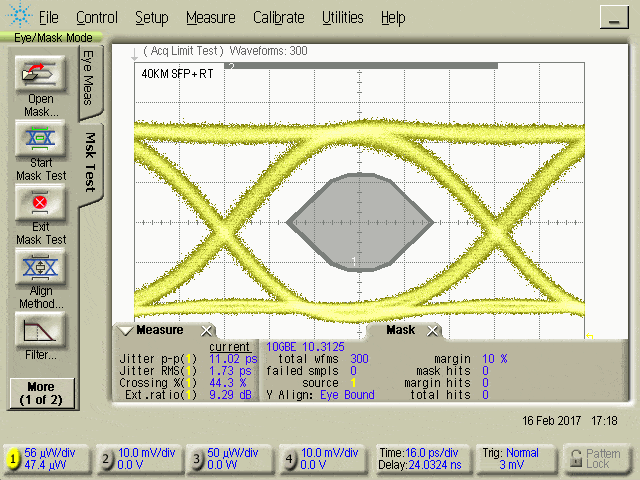

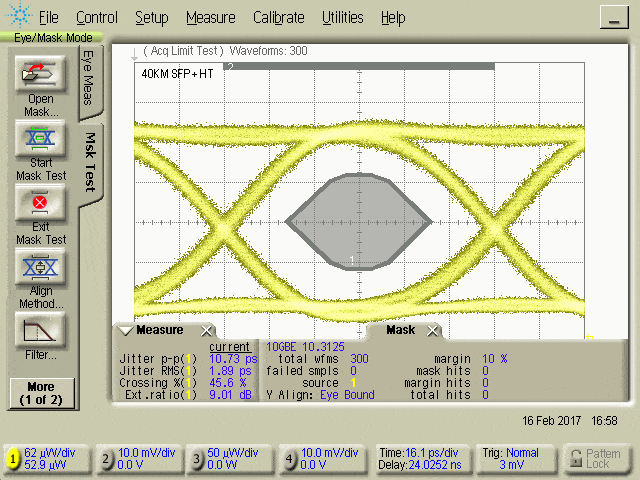

三眼图

室温

低温

高温
