10GBASE-CWDM SFP+ for ethernet 1271~1331nm 60km Transceiver

10GBASE-CWDM SFP+ for ethernet 1271~1331nm 60km Transceiver

ATOP’s APSPCxxB33CDL60 Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431,SFF-8432 and support 10G Ethernet LR and 10G Fibre Channel .It is designed for use in 10G-Gigabit multi-rate links up to 60km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Product Features

Package:

SFP+

Data Rate:

10G

Wavelength:

1270~1330nm

Component:

DFB/APD

Output Power:

+1~+6dBm

Rec. Sens:

-20dBm

Connector:

LC

Case Temp.:

C

Reach:

60KM

Multi-rate:

Y

Application

10GBASE-ZR lite

10G Fibre Channel

Eye Diagram

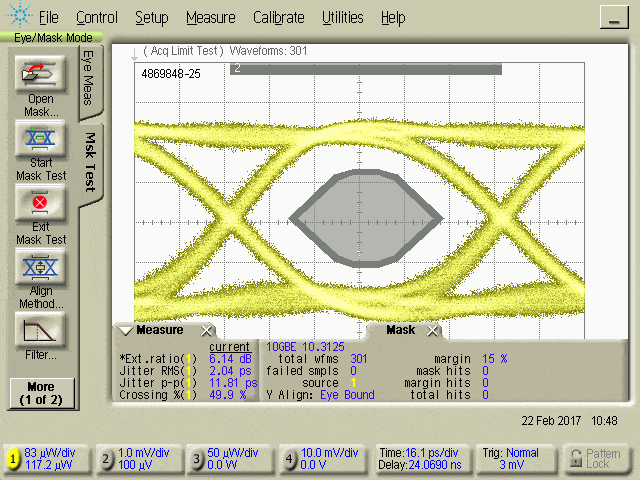

Room Temperature

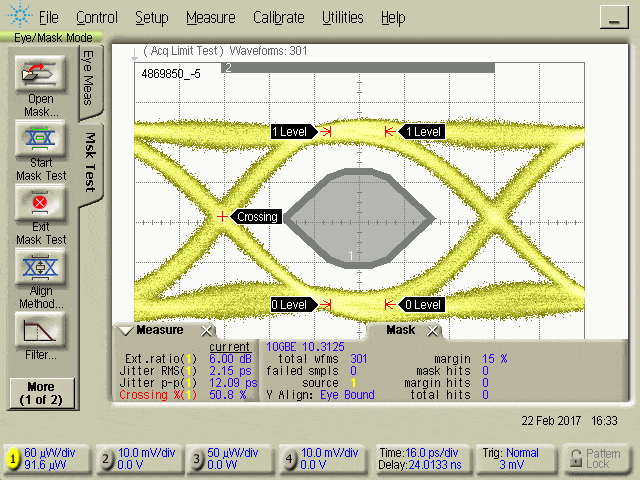

Low Temperature

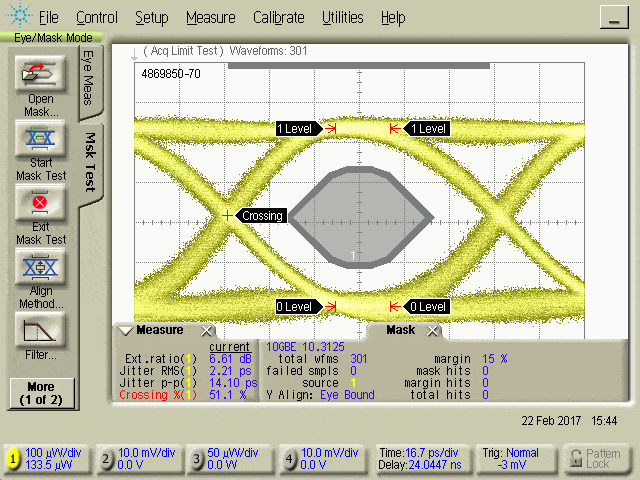

High Temperature
